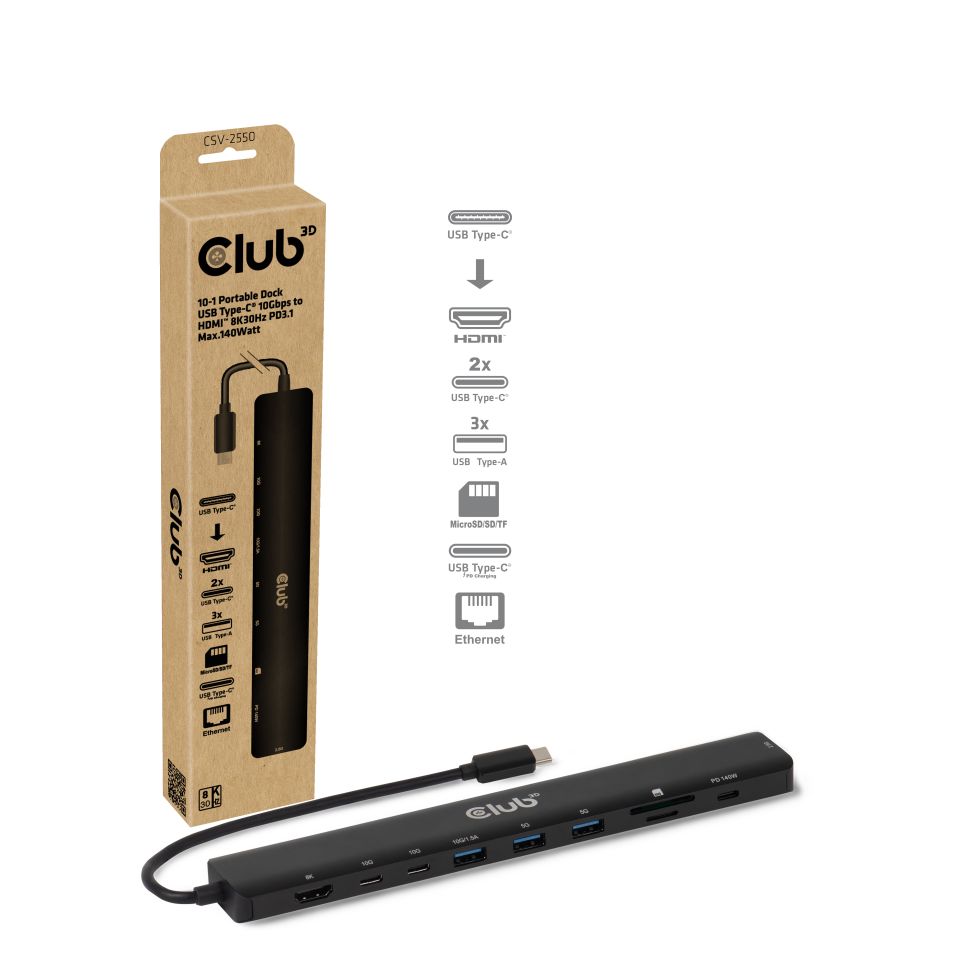

10-1 Portable Dock USB Type-C® 10Gbps to HDMI™ 8K30Hz PD3.1 Max.140Watt

Enlarge

10-1 Portable Dock USB Type-C® 10Gbps to HDMI™ 8K30Hz PD3.1 Max.140Watt

The Club 3D CSV-2550 is a 10-1 Portable Dock USB Type-C® 10Gbps to HDMI™ 8K30Hz PD3.1 Max.140Watt, providing an ideal solution for extending the port of USB Type-C® or Thunderbolt® host (PC/Laptop/Mobile phone, etc.), especially for those host with a single USB Type-C® port. This hub enables to output HDMI™ with max 8K30Hz or 4K144Hz high refresh rate for more natural and smoother visual experience at the meanwhile transfer USB 10Gbps data. 3x USB Type-A and 2x USB Type-C® data ports allow you to connect 5 USB devices simultaneously. SD/Micro SD allow to insert 2 card slots simultaneously for data transmission or for reading/writing information on the host. RJ45 port allows the host to get access to 2.5 Gigabit Ethernet. Besides, the USB Type-C® female supports PD 3.1 with max 140W PD Charging. It can work on all DP Alt mode supported USB Type-C® hosts.

• 10-PORT USB Type-C® HUB: Expand the connectivity of a USB Type-C® computer by adding three USB 10Gbps Ports (1x USB Type-A, 2x Type-C®) and 2x USB 5Gbps Ports ( 2x USB Type-C®) plus a Power Delivery 3.1 USB Type-C® Port Max. 140Watt; 2.5 Gigabit Ethernet RJ45 for wired LAN connectivity (Wake-on-LAN); Easy Driverless setup; as well as one HDMI™ 8K30Hz port

• 2.5GBASE-T GIGABIT ETHERNET: Features a 2.5Gb network controller that delivers speeds of 10/100/1000/2500Mbps; For laptops / devices without a USB Type-A or Ethernet, such as MacBook /iPad Air / Pro; USB Type-C® connectivity while providing power for PD3.1 charging

• RELIABLE PERFORMANCE: USB bus powered or via external USB Type-C® power adapter; 140W Power Delivery 3.1 pass through with 15W dedicated to the functioning of this product, the rest power (max 125W) will be passed for charging the host

• SD/TF CARD SLOTS: allow to insert 2 card slots simultaneously for data transmission or for reading/writing information on the host support Secure Digital v3.0 UHS-I (Ultra High Speed): SDR12 (12.5Mbyte/s)/SDR25(25Mbyte/s)/SDR50(50Mbyte/s)/DDR50(50Mbyte/s)/SDR104(104Mbyte/S)

Specifications

Product Name: 10-1 Portable Dock USB Type-C® 10Gbps to HDMI™ 8K30Hz PD3.1 Max.140Watt
Product Series: Hub
Product Code: CSV-2550
EAN code: 8719214473389
UPC code: 841615103638

Features:
• Support DP1.4 Alt mode
• Support HDMI™ max 8K30Hz
• Support HDMI™ high refresh rate at 4K144Hz
• Support 8/10/12bpc color depth output
• Support HDCP 2.3 & HDCP1.4
• Support HDR
• 2x USB Type-C® data ports and 1x USB Type-A (close to USB Type-C® 10G port) support max 10Gbps data transmission
• Another 2 USB Type-A ports support max 5Gbps data transmission
• USB Type-C® data port and 1 USB Type-A (close to USB Type-C® 10G port) port support max 7.5W ([email protected]) downstream charging per port
• Ethernet Support 10M/100M/1000M/2.5G bandwidth
• SD/TF card slots support data transmission up to 104MBps
• Allow SD/Micro SD to work simultaneously
• Support PD3.1 Charging with max 140W (28V/5A) power input
• Support Fast Role Swap of PD 3.1, ensuring the connected device does not disconnect while unplugging the PD Adapter

OS Support:
• Windows 10 or upwards, macOS 15.0

Available Interfaces:
Input:
• 1x USB Type-C® Male (Host connection)
Output:
• 1x HDMI™ Female: - Support 8K30Hz Max. - Support HDMI™ high refresh rate at 4K144Hz or 4K120Hz - Support 8/10/12bpc color depth output - Support output pixel format RGB; YCbCr4:4:4; YCbCr4:2:2; YCbCr4:2:0 - Support HDCP 2.3 & HDCP1.4 - Support DSC1.1/1.2a - Support HDR
Note: When connecting a DP1.4 Alt mode supported host, the max resolution of HDMI™ is 8K30Hz; when connecting a DP1.2 Alt mode supported host, the max resolution of HDMI™ is 4K60Hz due to bandwidth limitations.
• 2x USB Type-C® Female 10Gbps Max. - Max 10Gbps data transmission - Support max 7.5W ([email protected]) downstream charging per port - Support short-circuit, over-current protection
• 1x USB Type-C® Female (for PD 3.1 Charging) - Supports PD3.1 with max 140W PD Charging - 15W is dedicated to the functioning of this product, the remaining power (max. 125W) will be passed to charge the host - Support Fast Role Swap of PD 3.1, ensuring the connected device does not disconnect while unplugging the PD Adapter
• 1x USB Type-A Female - Max 10Gbps data transmission - Support max 7.5W ([email protected]) downstream charging - Support short-circuit, over-current protection
• 2x USB Type-A Female - Max. 5Gbps data transmission per port - Support max. 900mA (4.5Watt) downstream charging per port - Support short-circuit, over-current protection - The 5 USB data ports share max 12W (2.4A@5V)
• 1x RJ45 (Gigabit Ethernet) - Support 10M/100M/1000M/2.5G bandwidth - Support Wake-On-LAN - Light indicator: No light when no Internet is connected, orange light when network connection is established, green light flashes when transmitting data
• 1x SD/micro-SD Card slot - Support Secure Digital v3.0 UHS-I (Ultra High Speed): SDR12 (12.5Mbyte/s) / SDR25 (25Mbyte/s) / SDR50 (50Mbyte/s) / DDR50 (50Mbyte/s) / SDR104 (104Mbyte/s) - Allow SD/Micro SD to work simultaneously - TF card slot is equipped with a press self-spring device

Other Info:
• Box Size approx.: 7 x 32 x 3.5 cm / 2.76 x 12.6 x 1.38 in
• Device size approx.: 21.6 x 3.4 x 1.4 cm / 8.5 x 1.34 x 0.55 in
• Cable length approx.: 19 cm / 7.48 in
• Connector dimensions approx.: 2.4 x 1.2 x 0.65 cm / 0.95 x 0.47 x 0.26 in
• Device Weight: 109 gr / 3.84 oz
• Box Weight: 42 gr / 1.48 oz
• Bio Degradable Bag size approx.: 9 x 30 cm / 3.54 x 11.81 in
• Bio Degradable Bag Weight: 3 gr / 0.11 oz
• Total Weight: 154 gr / 5.43 oz

In the box:
• 1X CSV-2550 a 10-1 Portable Dock USB Type-C® 10Gbps to HDMI™ 8K30Hz PD3.1 Max.140Watt

Cable length approx: 19cm / 7.48in
Total length approx: 42.6cm / 16.77in (Cable+device)

Club 3D uses biodegradable bags according to EN/DIN 13432
Club 3D uses eco-friendly packaging printed on recycled paper
