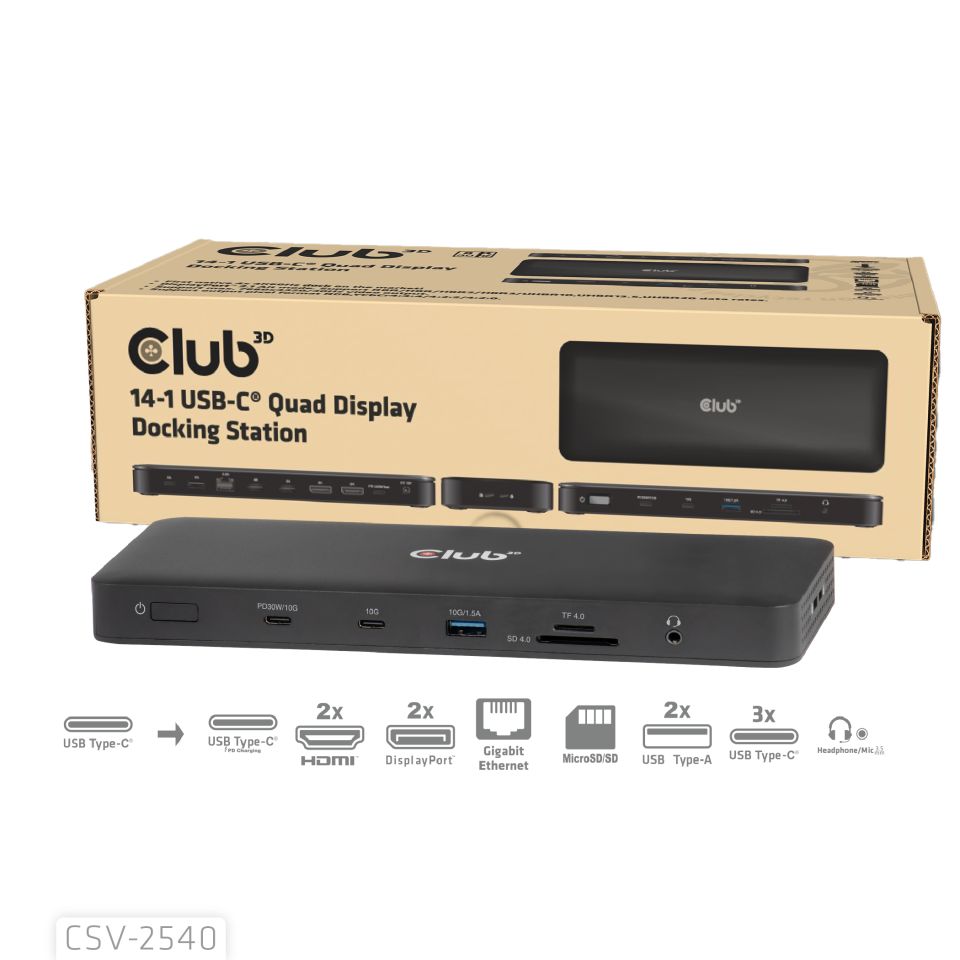

14-1 USB-C® Quad Display Docking Station

Enlarge

14-1 USB-C® Quad Display Docking Station

The CSV-2540 is a 14-in-1 Portable Dock USB Type-C® 10Gbps to Quad Displays docking station with 2 lane DisplayPort™ 2.1 Alt mode , which is used for extending a Type-C® port to be multiple video, data, audio, Ethernet and power ports, providing an ideal solution to satisfy users extending requirement . It has 4 videos (output four 4K/60Hz videos simultaneously when the host supports both UHBR10&DSC) for video transmission, 5 USB ports for data transmission. 2.5 Gigabit Ethernet for ultrafast Ethernet, microSD/SD card reader, 3.5mm combo audio jack. Additionally, this dock is equipped with 150W DC power supply, offering max 100W for connected PC as well as max 30W charging for USB-C® mobile devices.

• Quad Displays docking station with 2 lane DisplayPort™ 2.1 Alt mode, OUTPUT: 2x HDMI™ + 2x DisplayPort™ Connect up to 4 displays with a single USB Type-C® input, supporting resolutions up to 4x 4K60Hz screens for an immersive multi-monitor setup.
• 2.5GBASE-T GIGABIT ETHERNET: Features a 2.5Gbps network controller that delivers speeds of 10/100/1000/2500Mbps; For laptops / devices without an Ethernet.
• 14 PORTS from one USB Type-C®: Expand the connectivity of a USB Type-C® computer by adding Five USB Ports (2x USB Type-A, 3x Type-C®) a Power Delivery 3.0 USB Type-C® Port with Max. 100Watt upstream.
• 2 dedicated Card reader slots MicroSD/SD supports SD4.0(UHS-II) with max 312Mbps, card slots work simultaneously.

Specifications

Product Name:
14-1 USB-C® Quad Display Docking Station
Product Series: Docking Station
Product Code: CSV-2540
EAN code: 8719214473501
UPC code: 841615103751

Features:
• First native 4x 4K60Hz dock on the market!
• DisplayPort™ 2.1 Alt mode. Support RBR/HBR/HBR2/HBR3/UHBR10,UHBR13.5,UHBR20 data rates.
• Support max. 7680x4320/30Hz video output. Pixel format RGB,YCbCr4:4:4/4:2:2/4:2:0. HDR10+ and HDCP V1.4/V2.3.
• The USB-C® port close to the power switch supports max PD 30W(5V@3A,9V@3A,15@2A,[email protected]) charging for USB-C® mobile phone and other devices.
• USB-A 5Gbps has 900mA.The rest of the USB ports supports 1.5A downstream charging.
• DisplayPort™ supports DP++ which enables to use a DP™ to HDMI™ adapters.
• Power Switch & Power indicator LED.
• Making full use of external 150W power, offering max 100W for connected PC/Laptop as well as max 30W downstream charging for connected USB-C® mobile devices.
• Ultra-fast 2.5G speed supported, offering an even more seamless and responsive internet experience.
• Widely Compatibility: compatible with all Thunderbolt™ and full-featured USB-C® laptops.

*Supported Resolutions:**
• 8K30Hz, 4x 4K60Hz

OS Support:
• Windows 11, MacOS 15

In the box:
• 1x CSV-2540
• 1x Type-C® 1 m/3.28 ft Cable
• 1x Power Supply 150W

Available Interfaces
Input:
• 1x USB-C®

Output:
• 1x USB-C® PD
• 2x HDMI™
• 2x DisplayPort™
• 1x Ethernet
• 1x MicroSD/SD
• 2x USB-A
• 3x USB-C®

Other info:
• Product size: 22.5 x 8.5 x 2.2cm / 8.86 x 3.35 x 0.87in
• Box size 27.5 x 12.5 x 7.7cm / 10.83 x 4.92 x 30.31in
• Cable length approx.: 1m / 3.28ft
• Connector dimensions:
USB-C® 3.62 x 1.2 x 0.63cm / 1.43 x 0.47 x 0.25in
• Product Weight: 361g / 12.73oz
• Box Weight: 147g / 5.19oz
• Bio Bag Weight: 4g / 0.14oz
• Total Weight: 1160g / 40.92oz
• Meets ROHS, FCC, and CE EMI requirements

*The list of supported resolutions is based on the use of DSC (Display Stream Compression). Make sure your USB-C® port supports DisplayPort ALT mode, which is required to send video through the port. To use the full potential of this device, your setup must support all required standards.
