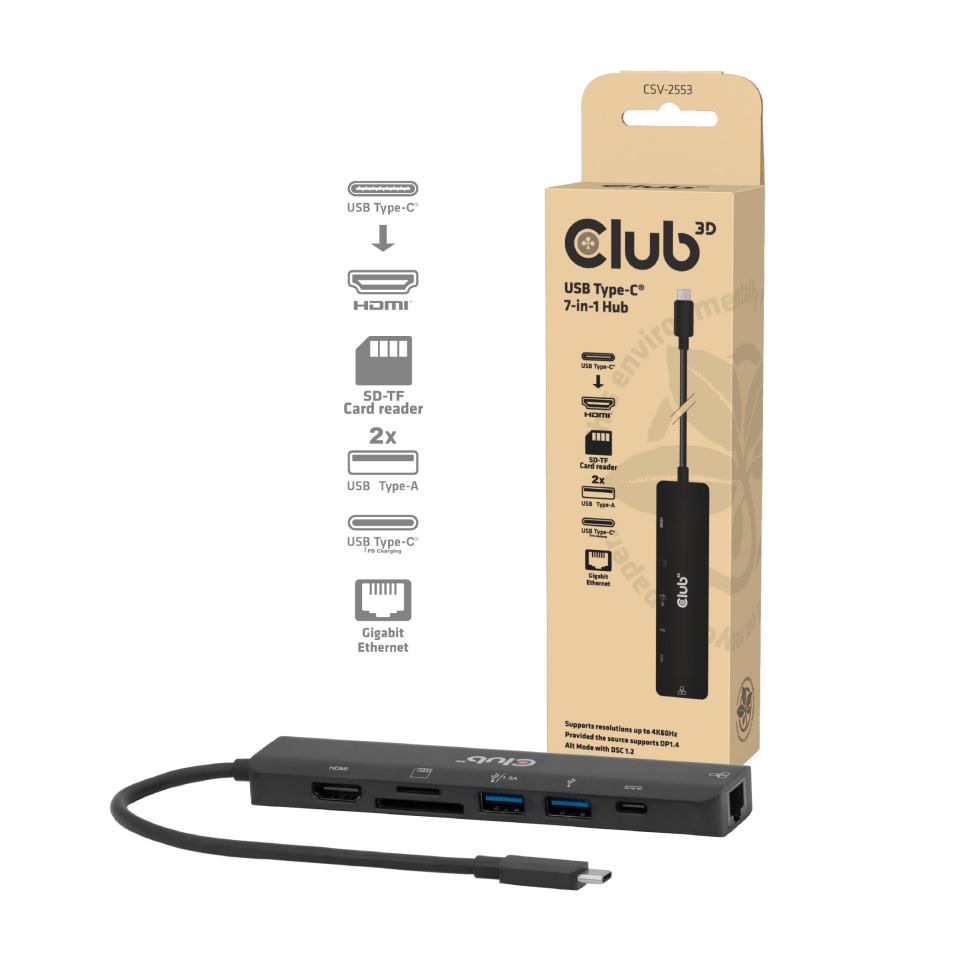

USB Type-C® 7-in-1 Hub

The Club 3D CSV-2553 is a USB Type-C®, 7-in-1 hub with HDMI™, 2x USB Type A, RJ45, microSD/SD card slots and Type-C® female port, providing an ideal solution for extending the port of USB Type-C® or Thunderbolt™ 3 host (PC/Laptop/tablet/Mobile phone, etc.)specially for the host with a single USB Type-C® port.

• 7-PORT USB Type-C®: Expand the connectivity of a USB Type-C® computer by adding two USB 5Gbps Ports (2x USB Type-A ) and a Power Delivery 3.0 USB Type-C® Port Max. 100Watt.
• 1 GBASE-T GIGABIT ETHERNET: Features a 1Gb network controller that delivers speeds of 10/100/1000Mbps; For devices without Ethernet, such as MacBook /iPad Air / Pro.
• RELIABLE PERFORMANCE: USB bus powered or via external USB Type-C® power adapter; 100W Power Delivery.

Specifications

Product Name:
USB Type-C® 7-in-1 Hub
Product Series: Hub
Product Code: CSV-2553
EAN code: 8719214473563
UPC code: 84161503812

Features:
• Support DP1.4 Alt mode.
• Support HDMI™ max 4K60Hz.
• Support 8/10/12bpc color depth output and HDR.
• Support HDCP 2.2&HDCP1.4.
• Both USB Type-A ports support max 5Gbps data transmission.
• The total output of the 2 USB-A is 12W([email protected]), 1 port (close to SD/Micro SD) supports max 7.5W([email protected]), another port supports max 900mA downstream charging.
• Ethernet Support 10/100/1000Mbps bandwidth.
• USB-C® PD Charging port supports PD3.0 with max 100 Watt.
• MicroSD/SD card slots support to transmission data with max 104MBps, allow SD/Micro SD to work simultaneously.
• Support Fast Role Swap of PD 3.0, the connected device will not get disconnected while plugging out PD Adapter.

*Supported Resolutions:**
• 4K60Hz

OS Support:
• Windows 11, MacOS 15

In the box:
• 1x CSV-2553

Available Interfaces
Input:
• 1x USB-C®

Output:
• 1x USB-C® PD
• 1x HDMI™
• 2x USB-A
• 1x Ethernet
• 1x MicroSD/SD

Other info:
• Product size: 13.61 x 3.4 x 1.4 cm / 5.36 x 1.34 x 0.55 in
• Box size 6 x 18.2 x 3.5cm / 7.16 x 2.36 x 1.38in
• Cable length approx.: 17cm / 6.7in
• Connector dimensions:
USB-C® 3.62 x 1.2 x 0.63cm / 1.43 x 0.47 x 0.25in
• Product Weight: 71g / 2.5oz
• Box Weight: 22g / 0.78oz
• Bio Bag Weight: 2g / 0.07oz
• Total Weight: 95g / 3.35oz
• Meets ROHS, FCC, and CE EMI requirements

*The list of supported resolutions is based on the use of DSC (Display Stream Compression). Make sure your USB-C® port supports DisplayPort ALT mode, which is required to send video through the port. To use the full potential of this device, your setup must support all required standards.
