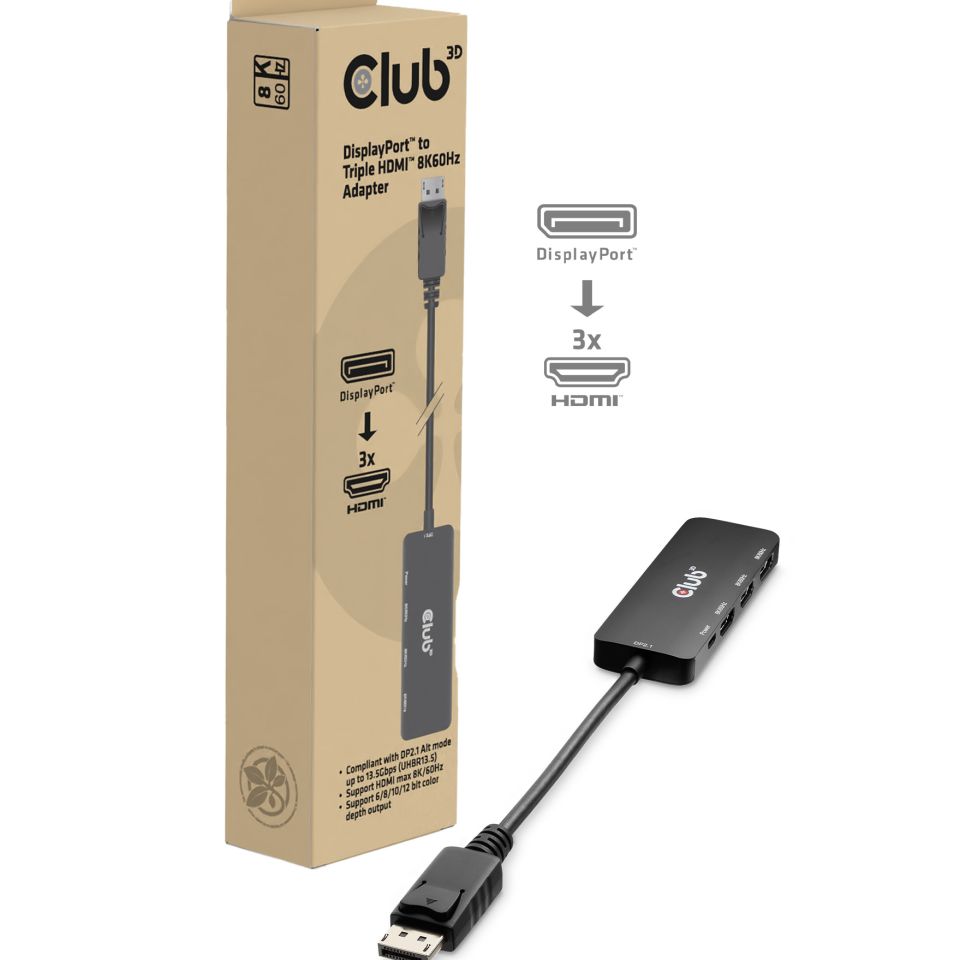

DisplayPort™ to Triple HDMI™ 8K60Hz Adapter

Enlarge

DisplayPort™ to Triple HDMI™ 8K60Hz Adapter

• TRIPLE HDMI™ OUTPUT: Connect up to three HDMI™ displays with a single DisplayPort™ input, supporting resolutions up to 8K60Hz or a mix of 8K and 4K screens for an immersive multi-monitor setup.
• EASY TO USE: Plug-and-play functionality with no additional drivers required; powered via DisplayPort™ with an optional Micro-USB for extra power when needed.
• UNIVERSAL COMPATIBILITY: Works with DP2.1 and backward compatible with DP1.4 (resolution may be limited based on host device capabilities).
• MICRO-USB POWERED: Requires an external 5V power supply via Micro-USB for stable operation across all connected displays.

Specifications

Product Name:
DisplayPort™ to Triple HDMI™ 8K60Hz Adapter
Product Series: Adapter
Product Code: CSV-7330
EAN code: 8719214473471
UPC code: 841615103720

Features:
• Compliant with DisplayPort™ 2.1 Alt mode up to 13.5Gbps (UHBR13.5)
• Support HDMI™ max 8K60Hz
• Support 6/8/10/12 bit color depth output
• Support pixel format RGB/ YCbCr4:4:4/ YCbCr4:2:2/ YCbCr4:2:0
• Support HDR, HDCP 2.3, HPD
• Support 5V Micro-USB power supply

OS Support:
• Windows 10 upwards

In the box:
• 1x CSV-7330
• 1x Micro-USB Cable 1m / 3.28 ft
• 1x Quick Install Guide

Available Interfaces
Input:
• 1x DP54
• 1x Micro-USB
Output:
• 3x HDMI™ 2.1 Supported resolutions: 2x 8K60Hz, 8K60Hz + 2x 4K120Hz

Other info:
• Box size 6 x 24 x 3.5cm / 2.36 x 9.45 x 1.38in
• Cable length approx.: 14cm / 5.51in
• Connector dimensions: 3.62 x 1.2 x 0.63 cm / 1.43 x 0.47 x 0.25"
• Product Weight: 67g / 2.36oz
• Box Weight: 28g / 0.99oz
• Bio Bag Weight: 5g / 0.18oz
• Total Weight: 100g / 3.53oz
• Meets ROHS, FCC, and CE EMI requirements
